The Best Dc Motor 24V 12 Hp

The AmpFlow E30-150 motor is designed to deliver good performance and efficiency at an economical price. This is achieved by the use of four brushes and advanced electromagnetic computer modeling and design. these motors are made from two sturdy aluminum castings and a seamless body. The E30-150 motor is 3. 1 inches in diameter and 4 inches long. The 1/2-inch diameter shaft is two inches long and it rides in two high-quality ball bearings. There is a short 3/8-inch diameter shaft on the rear of the motor for mounting an optical encoder. The heavy-gauge 12 AWG motor leads are 18 inches long. The motor weighs 3. 6 pounds and it is finished in a high-quality black powder-coat. this reversible motor can be used at voltages ranging from 12V to 36Vdc. At 24 Volts it has the following performance: the no-load speed is 5600 RPM. It develops a maximum of one horsepower and a maximum stall torque of 710 oz.-in. Peak efficiency of 76 percent is achieved while drawing 17 Amps at 5000 RPM. Power and torque at peak efficiency are 0. 4 horsepower and 85 oz.-in. this motor is also available with an optional gearhead. Search for “AmpFlow Gear motors”. The AmpFlow E30-150 motors are used in diverse applications including robots, industrial motion control, factory automation, semiconductor manufacturing, power tools, and electric bicycles.

Description

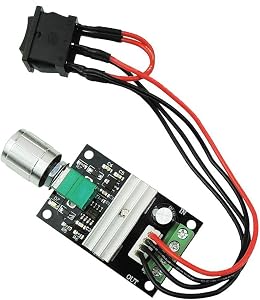

The 1203BB DC Motor Speed Regulator controls the speed of a DC motorby adjusting Pulse-Width-Modulated (PWM). It provides a continuous current of 3A to your DC motor or other DC load. Besides, the circuit also includes a 3A fuse. With reverse connection of power supply and control the forward or reverse direction and the stop of DC motor by switch.

Features
– Material: Metal.
– Size: 5 * 3.2 * 1.5cm.
– The switch cable length 15cm.

Operating instruction
Before you attempting to wire the controller, make sure that the power is off.
1. Connect wires refer to the wiring diagram.
2. Turn on the power, and adjust the potentiometer.
3. The LED indicates the power up and the speed of motor.

Warning: Do not reverse positive and negative power loads. This will damage the controller!

Package Including
1 * 1203BB 6V 12V 24V 3A 80W DC Motor Speed Controller (PWM) Adjustable Reversible Motor Driver Switch

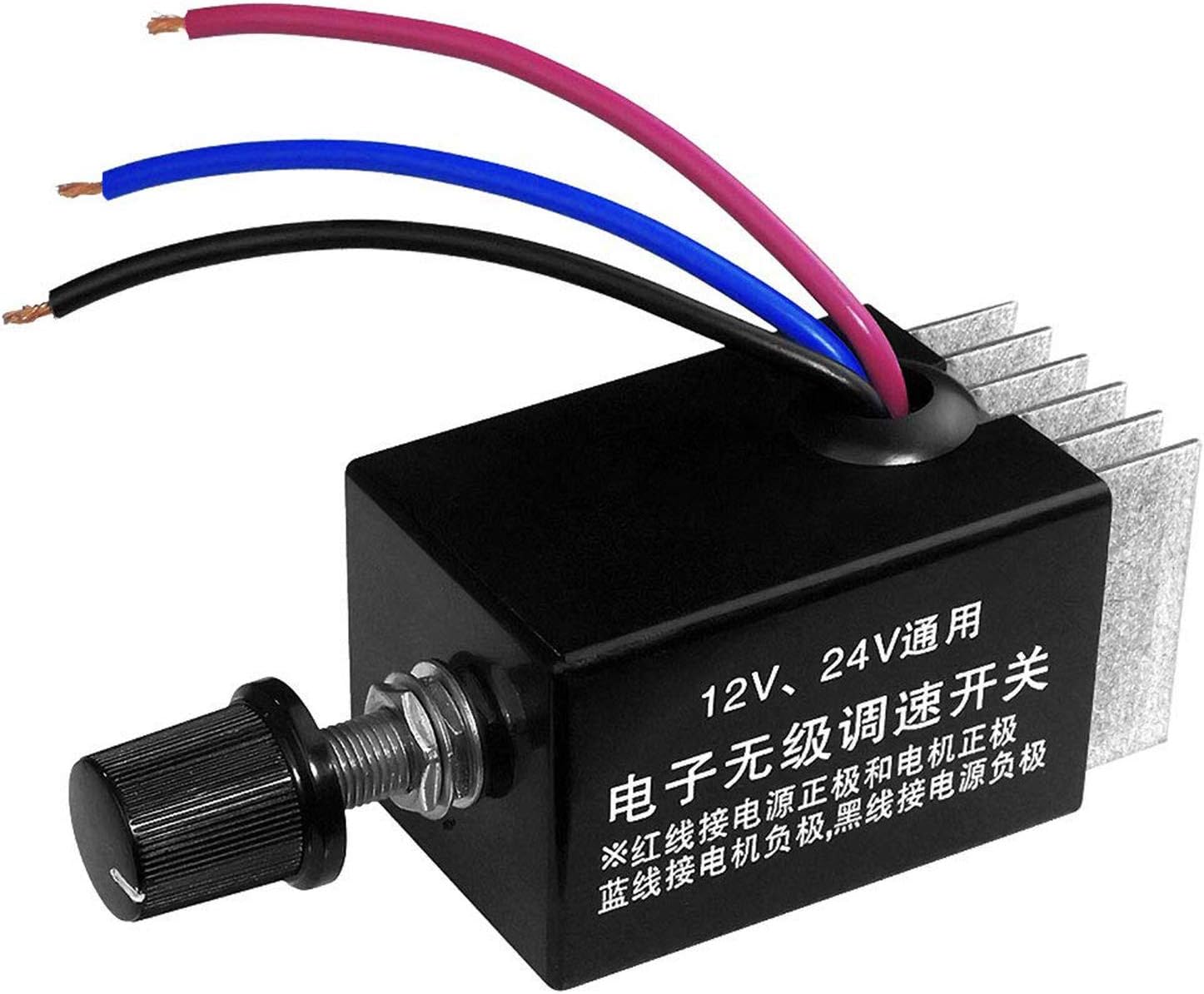

Parameters:
● Voltage: Universal 12V or 24V
● Overload current: 10A
● Rated power: 12V/120W, 24V/240W
● Size: 3.66*1.42*1.26 inch
● Weight: 3.53oz

Product features:
●PWM stepless speed regulation switch can completely turn off the output. Extra long knob screw to meet installation needs
●The appearance is small and good-looking, and it supports adjustment of DC motors, motors, pumps, lamp beads, light strips, fans, etc
●Comes with heat sink to meet heat dissipation requirements

Wiring Connect:
● Red wire: Connected to the positive pole of power supply and motor.
● Blue wire: Connected to the negative pole of motor.
● Black wire: Connected to the negative pole of power supply.
Wiring precautions: (can not be reversed, wrongly connected)

Product size:
●Shell size: 2.48″*1.41″*1.26″
●Knob diameter: 0.28″
●Knob thread: 0.55″
●Knob with knob cap total length: 1.18″
●Cable length: 3.93″

Package included:
●1 × DC Speed Controller Switch

NOTE: The governor is suitable for 12 and 24V DC power.
It cannot be connected to household 220V voltage.
When using it, the positive and negative poles of the power supply cannot be reversed.

Descriptions:
* SINGLE-PHASE CIRCUIT: This single-phase asynchronous motor speed controller can be used for 24V, 36V, 90V DC motors
* HUMANIZED SHELL DESIGN: This electric speed regulator has small size, high precision, wide speed controlling range, low power consumption, Used for single （1/3）phase DC motor.
* CONVENIENT SPEED CONTROL: The Speed Regulator with adjustable knob can be used to adjust voltage freely, convenient and simple.
* LONG SERVICE LIFE: Our Knob motor speed controller with Over Current protection and short circuit protection.(with 5A fuse)
* WIDE APPLICATION: This motor speed controller could widely used for speed governing device drivers of packaging, printing, electronics, instrument meter, clothing machinery, medical machinery and other industries

Features:
* Operating Voltage: AC 110V
* Controll motor Power: 0.01-400W
* Ouput DC Votage: DC 0-90V Adjustable
* Fits for DC 24V, 36V, 90V ect DC Motor
* Size: 100*60*112mm
* PW PW: connected as emergency stop
* M+ M-: motor + Motro -(DC output)
* AC AC: 110AC input

Package:
* 1*speed controller

Attention:

* Don’t ran the motor at full speed at first, please increase the speed gradually. Or the fuse will be damaged.

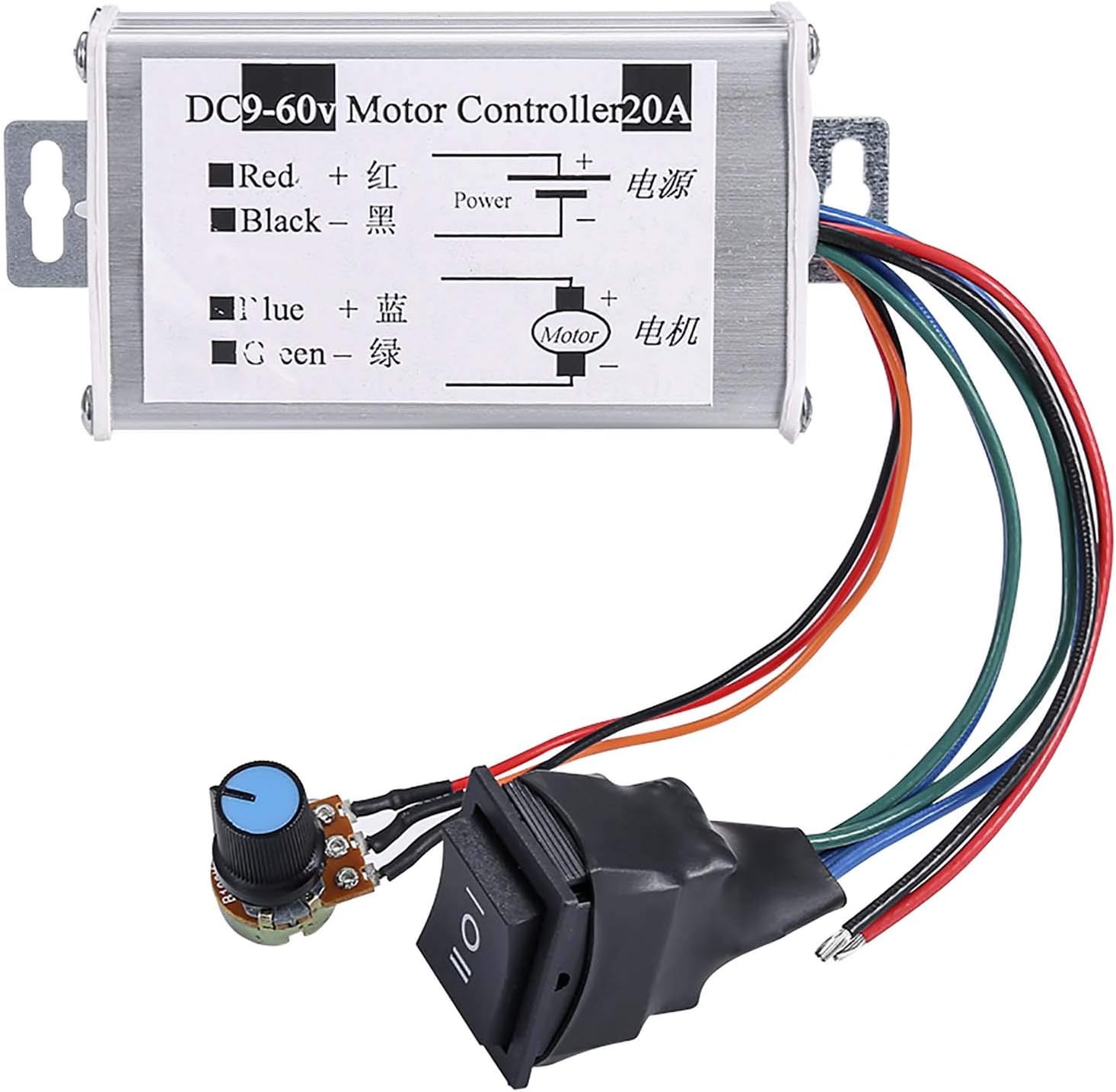

Hima Motor Speed Controller technical parameters
Includes: 1x DC motor controller
Note: The motor cannot be used in electric vehicles.
Input voltage range: DC 9-60V output voltage
Linear load output current: 0-20A
Continuous power: 1200W

Speed control mode: potentiometer (linear)
Speed range: 0-100%
Input current: requires more current than the motor
Continuous current: within 18A
The input voltage should be equal to the rated voltage of the motor.

Control frequency: 25KHz clockwise / counterclockwise rotation; support Fit motor:
DC brush size: 92x52x36mm
Product net weight: 155 grams
Potentiometer mounting hole diameter: 7mm
Wiring connection: thick red line: power +, thick black line: power -, blue and green motor is not positive or negative
