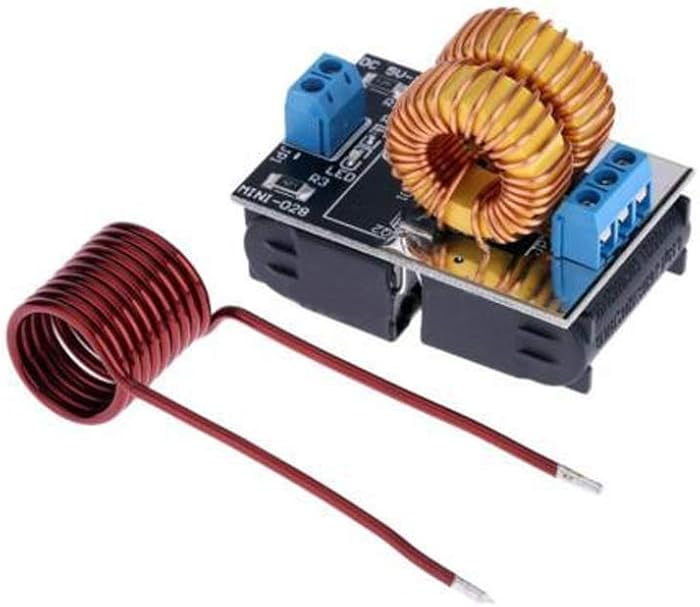

1. Treedix 5-12V ZVS Low Voltage Induction Heating Power Supply Module with Coil Power Supply Heating Power Supply Module
Feature
- ZVS heating Power Source module, with heating coil included. The heating coil can be soldered onto the PCB.
- Input Voltage：DC 5V~12V(This voltage range is the voltage during operation, not the voltage when the power supply is unloaded).
- The width of the object to be heated should be between 1/3 and 1/2 of the inner diameter of the heating coil, and it should not exceed 2/3.
- Ensure all the components welding right, power line connected in the right way, then to set up an electric circuit.
- The current / voltage is directly linked to what you’re heating.
Description
Specification：
Input Voltage：DC 5V~12V
Max Power：120W
PCB Size：55 x 37 x 1.6 mm
Package Included:
1 x ZVS heating Power Source module
1 x heating coil
Note:
1. When inductive heating, usually work for 5 minutes to power off cooling. Because the current is relatively large during induction heating, the coil heat is also relatively large. When heating, part of the heat generated by the heated object is transmitted to the heating coil. For a long time, the temperature of the heating coil is high. If the heating coil is connected to the terminal, the plastic part of the terminal will be melted. Therefore, when induction heating, it is best to solder the heating coil directly to the PCB
2. Only some types of materials can be effectively induction heated – mostly magnetic materials such as steel. Materials such as brass, copper and aluminum will be very difficult to heat.
3. A large capacitor placed in parallel with the supply voltage can help reduce the voltage/current drop that prevents the unit from starting.
4. This module should not be operating when no load, otherwise it might burn out the circuit.
5. You can check whether the blue LED indicator light up to see if the power is supplied or the module can functionally work. When the indicator is dim, maybe the power supply is insufficient, should use a higher power supply. Just make sure the power supply is within DC 5-12V.
Remark: You can solder the heating coil on the board.
2. 1800W ZVS Induction Heating Board Module Low Voltage High Frequency 12-48V Flyback Driver Heater with Tesla Coil and Cooling Fan
Feature
- The induction heating boards maximum power is 1800W, adopted super PCB layout design and super heat sink, heat dissipation good, since with a cooling fan interface, can also do Tesla discharge, generator voltage inverter, etc
- The induction heating circuit adopt 12-48V DC power supply, maximum current is 40A, the power uo to 1800W. It can work continuously under the condition of good heat dissipation. moderate power which make it can be used to quenching, annealing and other heat treatment. also for melted with graphite crucible kim/silver/ copper/aluminum and so on, heating is evenly and fast
- it is recommended that not exceed 48V 35A to prevent accidents and damage,Although withstand more than 40A current.Induction heating is recommended to use 36V 20A power supply, 12V power supply is too small almost without response, and 12V power might lead to the voltage decreases, which is very dangerous.More than 24V/20A power supply, the greater the voltage/current, the greater the heating power, heating faster.
- please check the power output meets the requirements if the MOS tube fever,and be sure to do a good job of cooling.Do not empty the board, otherwise it will create a very high noise, then MOS tube will burn out
- please do not to heat too large metal, otherwise it may be overloaded, please add a 35A fuse or ammeter and air switch for better use (not included).
Description
Specification:
Product size:Approx.180x90x80mm (please allowed 1-3mm error)
Heater ring inner:70mm (Recommended crucible+quartz suit,maximum support of 58mm crucible)
Power supply:
New style :AC 100-220V Adapter
Old style: Main board Input voltage: 12V-48V recommend: 36V above
Power requirements: less than 12V≥10A , 15V above≥15A
NOTE:New style and Old style shipped by randomly!!!
It doesn’t affect the performance of product.!!!
Maximum power: 1800W
Maximum current: 40A
Package Content:
1 x PCB board
1 x 48V copper tube
1.The power of heating is very large, except that the plate and components are hot, and the heat of copper tube is very high. you can buy a small water pump and 2 meters of rubber hose(inner diameter is 4mm) for build a water cooling system
Please pay attention to using switch power supply, because output voltage is slowly rising, and if the voltage rise to 10V before connected induction heating circuit that will be lead to circuit can’t afford to vibrate caused by lacking voltage,so that the two MOS tube conduction and components will burned
comes with heating circle diameter-60 mm/design voltage-36V,if you use more than 40V Devices shall be used ≥70 mm diameter heating ring, DC 12V water pump use, please use separate power supply voltage regulator module to avoid fan and water pump are burn out
The minimum input is 12V, but it doesn’t mean all 12V power supply available,The module has specific requirements on voltage and current , 12V require current must than 10A ,output power will greatly reduced if the power is too low ,which will lead to two MOS conduction at the same time & burn MOS tube when lower than 12V
3. KOOBOOK 1Pcs 1000W ZVS Low Voltage Induction Heating Board Module Flyback Driver Heater 12V-48V DIY
Feature
- This section of induction heating using low-voltage DC power supply 12-48V,maximum current 20A, maximum power 1000W,long-time working power 500-800W.
- Can only be used for small parts DIY players do hardening, annealing and other heat treatment.Also can be used with a graphite crucible melting gold, silver, copper, aluminum and other metals, uniform heating fast, very convenient.Not for industrial production.
- The higher the voltage, the greater the heating current when the same thing, the effect is better.But at the same time heat is also large, so to eradicate the actual situation to select the input voltage, the general use of the words 24V or 36V power supply is enough.
- The circuit board using double-sided fiberglass board, mainly copper traces are used to widen use the entire back surface of the resonant circuit common, continuous work, please add a fan to blow down from above, to the resonance capacitors and other components cool.
- The kit contains a full set of driving circuit elements and brass.Buyers need to bring their own power and cooling unit.
Description
Specifications:
Inside diameter of the coil: approx. 40mm
Height of the coil: approx. 50mm
24V input with no load current of 3A
48V input with no load current of 6A
It suits 12-36V power supply (not included)
The coil accept 40mm crucible
Note:
The use of switching power supply Please note that due to high power are generally slow start function, which just opened machine output voltage is slowly rising, while it is turned on before the induction heating circuit if the voltage rises to 12V, because start insufficient voltage can not afford to vibration, resulting in two simultaneous conduction mos tube so burned components.
So the first will start switching power supply voltage reaches 12V above and then access the induction heating circuit.
The volume of the object being heated inside the heating coil can not exceed 1/5 of the volume (if the heating cylinder, then heating coil diameter less than the diameter of 1/3), or it may be due to overload or burn out the power supply to the circuit.
Although this circuit can tolerate 20-30A input current moment, but do not exceed 15A when safe work, you can easily add an ammeter between the power supply and heating driver board but always monitor the current overload.
This circuit can not only do the induction heating, the copper tube into the high-frequency transformer, is a powerful inverter.
We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.
Package Includes: 1Pcs
1 x ZVS low voltage induction heating board
1 x brass coil
4. fosa 1800W Induction Heating Module ZVS Low Voltage 12V-48V Induction Heating Board Flyback Driver Heater DIY High Frequency Induction Heating Machine Module
Feature
- This product has a maximum power of 1800W, super PCB layout design and super heat sink, superior heat dissipation effect
- 12-48V low voltage DC power supply with a maximum current of 40A. It can work continuously for several hours with good heat dissipation
- Can use graphite crucible to melt gold, silver, copper, aluminum and other metals, heating evenly, fast and very convenient
- With a cooling fan interface, can also do Tesla discharge, generator voltage inverter, etc
- It is recommended not to exceed 48V 35A to prevent accidents and damage
Description
Specification:
Input Voltage: 12V-48V (Recommendation: above 36V)
Power Requirments: Less than 12V >=10A, More than 15V >=15A
Maximum Power: 1800W
Maximum Current: 40A
Heater Inner Ring: 70mm / 2.8in
Size: 18 * 12 * 9 cm / 7.1 * 4.7 * 3.5in
Weight: Approx. 1052g
Package Included:
1 x PCB Board
1 x Copper Tube
Note:
1. When using a switching power supply, make sure that the power supply voltage is stable before connecting to the induction heating circuit.
2. Do not heat metal that is too large or it may be overloaded. Please add a 35A fuse or ammeter.
3. Although this driver board can withstand more than 40A, it is recommended not to exceed 48V 35A to prevent accidents and damage.
4. The minimum input voltage of the module is 12V, the voltage of 12V must be greater than 10A to use the power supply.
5. If you find that the MOS tube is hot, first consider whether the power output meets the requirements.
6. Do not clear the circuit board, otherwise it will emit a very high frequency of noise, and then the MOS tube will burn out.
7. It is recommended to use a 36V 20A power supply. Below 12V is very dangerous.
5. ZVS Driver Module,5V-12V ZVS Low Voltage Induction Heating Power Supply Board+Heating Coil
Feature
- ZVS heating power supply module including 1pcs heating coil
- Input voltage- DC 5V-12V
- Max Power-120W (when 12V induction heating)
- Ensure all the components welding right,power line connect in right way,than to set up an electric circuit
- Width of the heated object : as far as possible 1/3~1/2 , maximum inner diameter of the heating coil: not more than 2/3
- PCB size: 55 mmx37 mmx1.6 mm
Description
Specification:
Input voltage: DC 5v-12 v
Maximum power 120w (12 v induction heating). 12 v, push the ignition coil primary 5 + 5 turn, about 30 w.
PCB size: 55 mmx37 mmx1.6 mm
Heating coil, the width of the heated objects as far as possible between the heating coil diameter of 1/3 ~ 1/2, most not more than two-thirds.
Package Included:
1 x ZVS driver board
1 x heating coil
6. 1000W 20A ZVS Low Voltage Induction Heating Board Module Tesla with Coil 12V-48V Flyback Driver Heater DIY
Feature
- 12-48V low voltage power supply. Maximum current 20A, Maximum power 1000W.The bigger voltage, the higher power.
- Tested 53V power supply when working properly. It can be used for DIY players to make small parts quenching, annealing and other heat treatment, heating fast, very convenient
- This circuit can do induction heating, or replace copper tube with high frequency transformer, it will be a powerful inverter
- The higher voltage, the higher current when heating the same things, the effect is better, but at the same time heating is also higher, therefore the choice of input voltage is based on your need.24V or 36V power supply is enough
- Note: buyer need to bring their own power and cooling unit
Description
Features:
24V input with no load current of 3A , 48V input with no load current of 6A
buyer need self-provided power and water cooling device
This circuit can do induction heating, or replace copper tube with high frequency transformer, it will be a powerful inverter
Note:
The kit contains a full set of driving circuit elements and brass
Buyers need to bring their own power and cooling unit.
The circuit board using double-sided fiberglass board, mainly copper traces are used to widen use the entire back surface of the resonant circuit common, continuous work, please add a fan to blow down from above, to the resonance capacitors and other components cool.
The use of switching power supply Please note that due to high power are generally slow start function, which just opened machine output voltage is slowly rising, while it is turned on before the induction heating circuit if the voltage rises to 12V, because start insufficient voltage can not afford to vibration, resulting in two simultaneous conduction mos tube so burned components.
So the first will start switching power supply voltage reaches 12V above and then access the induction heating circuit.
The volume of the object being heated inside the heating coil can not exceed 1/5 of the volume (if the heating cylinder, then heating coil diameter less than the diameter of 1/3), or it may be due to overload or burn out the power supply to the circuit.
Although this circuit can tolerate 20-30A input current moment, but do not exceed 15A when safe work, you can easily add an ammeter between the power supply and heating driver board but always monitor the current overload
Package Includes:
1 x 20A 1000W Flyback driver inductive heater Zero Voltage Switching Tesla
1 x Coil
7. Bewinner 2000W High Voltage Induction Heater Module Flyback Driver Heating Board(US Plug 100-240V)
8. Induction Heating Module ZVS Low Voltage Induction Heating Board Driver Heater DIY High Frequency Induction Heating Machine Module 1800W 12V-48V
Feature
- This induction heating circuit uses 12-48V low voltage DC power supply, maximum current 40A, the most highest power is 1800W. It can work continuously under the condition of good heat dissipation.
- Input voltage: 12V-48V recommend: 36V above
- Power requirements: less than 12V≥10A , 15V above≥15A
- Maximum power: 1800W
- Maximum current: 40A.
- Product size: 180mm x 90mm x 80mm (Manual measurement, error about 3mm, please understand).
- Heater ring inner: 70mm (Recommended crucible + quartz suit, maximum support of 58mm crucible)
- The ZVS induction heater can be used by DIY players to give smaller players the parts can be treated by quenching, annealing and other heat treatment. You can also be melted with graphite crucible Kim, silver, copper, aluminum and other metal, heating evenly, is fast and very convenient.
Description
Features:
Maximum power of 1800W, super PCB layout design and super heat sink, superior heat dissipation effect.
12-48V low voltage DC power supply with a maximum current of 40A. It can work continuously for several hours with good heat dissipation.
Can use graphite crucible to melt gold, silver, copper, aluminum and other metals, heating evenly, fast and very convenient.
With a cooling fan interface, can also do Tesla discharge, generator voltage inverter, etc.
It is recommended not to exceed 48V 35A to prevent accidents and damage.
Due to its moderate power, it can be used by DIY players to give smaller players the parts can be treated by quenching, annealing and other heat treatment.
You can also be melted with graphite crucible Kim, Silver, Copper, aluminum and other metal, heating evenly, is fast and very convenient.
Package Included:
1 x PCB board
1 x 48V copper tube
Conclusion
