The Best Small Vacuum Vise

0
843 reviews analysed
Rank
Product Name
Score

1. Bessey BVVB Vacuum Base Vise

Bessey BVVB Vacuum Base Vise

Feature

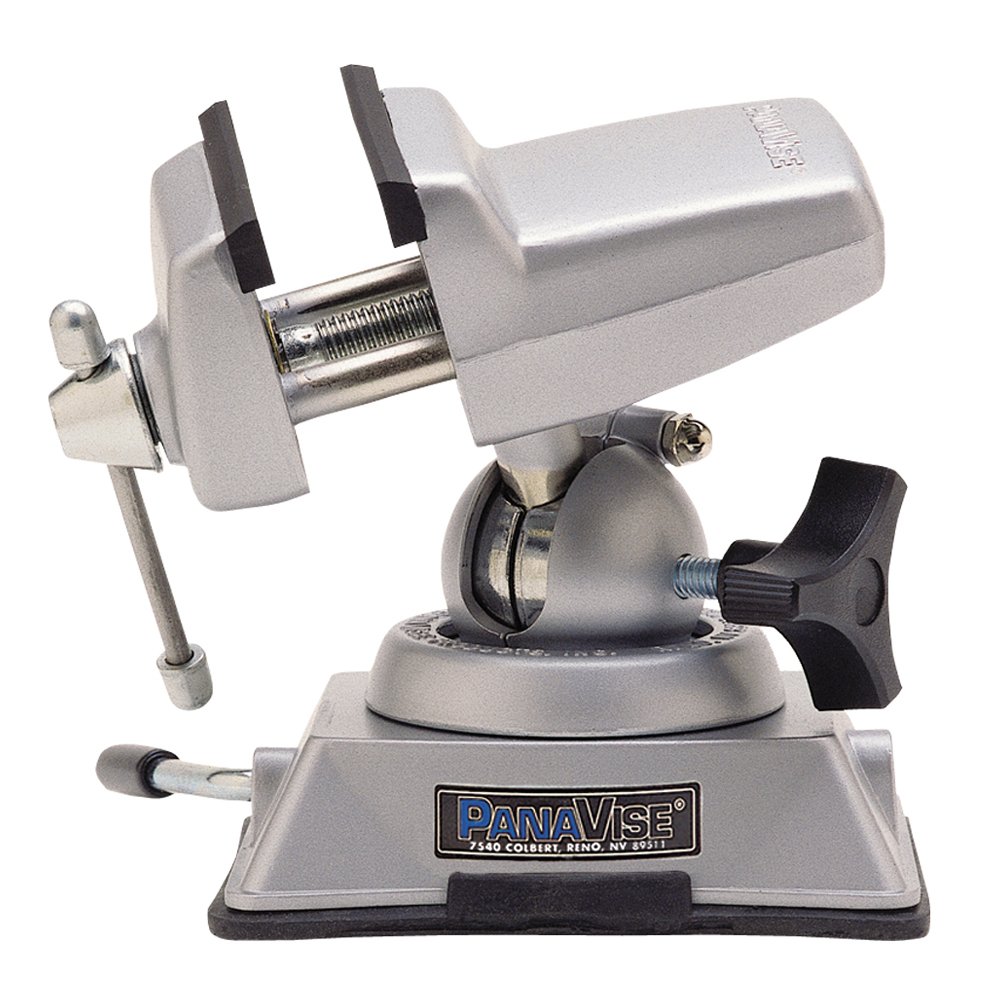

2. PanaVise 381 Vacuum Base PanaVise

PanaVise 381 Vacuum Base PanaVise

Feature

Description

Size:1-(Pack)

Product Description

PanaVise is a major manufacture of Vises and Work Holding Tools. PanaVise’s Tilt, Turn & Rotate technology has been applied to the product line, allowing for maximum efficiency and many different uses! All PanaVise Products are covered by a Limited Lifetime Warranty! Introducing the Panavise 381 VACUUM BASE PANAVISE, The world’s most PORTABLE work holding tool! Quickly attaches to any smooth, non-porous flat surface with the flip of a lever! Take it anywhere you need it for hobbies, electronics and small home repairs. Our Vacuum Base PanaVise is widely used for portable applications. Single knob controls head movement through 3-planes: 90 Degree Tilt, 360 Turn & 360 Rotation. Jaws are 2.5-Inch (63.5mm) wide, 0.5 (12.6mm) tall and open to 2.25 (57.1mm). Nylon jaws offer excellent electrical insulation and gentle holding power, continuous heat tolerance up to 200 F (93C), intermittent heat to 300 F (149 C). Interchangeable jaws available. Base accepts all 300 series Heads and any 5/8-Inch (15.9mm) diameter shaft. Pad footprint measures 5.125 x 4.25 (130.2mm x 108mm). Height: 6.125 (155.6mm), Weight: 2.8 lbs. (1.3kg). Limited Lifetime Warranty!

From the Manufacturer

The PanaVise 381 vacuum base PanaVise is a work-holding tool base and head combination designed for use on smooth, non-porous surfaces away from traditional work benches. The base includes a smooth rubber pad and lever combination which creates a vacuum that secures the unit to surfaces. The head assembly component opens to 2-1/2″ (63.5 mm), and clamps down with smooth insulated nylon jaws for gentle holding power. Other features include rugged, yet lightweight construction and a PanaVise “split-ball” adjustment element utilizing single-knob controls for head adjustment on three separate planes (tilt, turn and rotate).

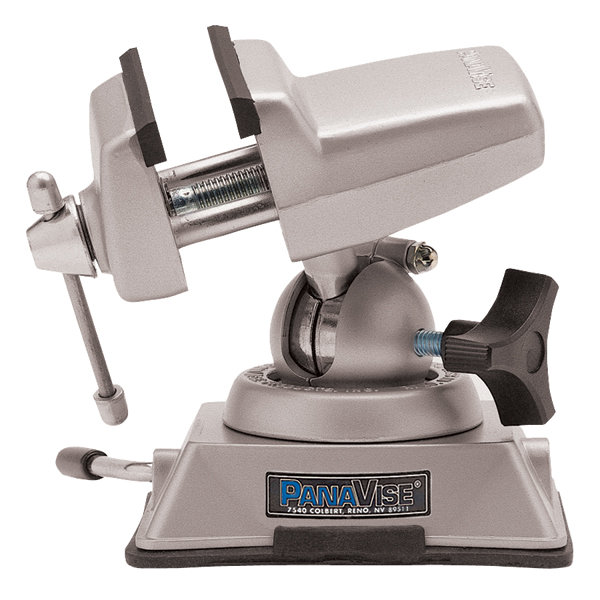

The PanaVise 381 vacuum base holding tool

Two-piece work-holding tool that creates a vacuum securing its base to smooth surfaces.
View larger.

Portable Clamp-free Holding Power

The 381 vacuum base PanaVise is a portable two-piece work-holding tool suitable for hobby, electronics and small home repairs, that consists of the PanaVise 380 vacuum base and the 303 standard vise head. The base component of the unit adheres to smooth, non-porous surfaces via the vacuum action that the rubber pad and flip handle at its bottom create when engaged. The vacuum action creates a stable and reliable working platform that eliminates the need for traditional bench clamps or weighted accessories. The combined unit weighs 2.8 lbs. (1.3 kg), is portable and easy to transport. The rubber vacuum pad is replaceable if its holding power is ever compromised by wear.

The standard 303 vise head assembly utilizes smooth, removable nylon jaws along its opening that measure 2-1/2″ (63.5 mm) by 1/2″ tall (12.6 mm). These secure tough small jobs without scratching and offer excellent electrical insulation and gentle holding power. The overall vise opening width between jaws is 2-1/4″ (57.1 mm). Because exposure to heat sources is common in vise applications such as gluing, circuit board wiring, jewelry making and use around handheld power tools, the vise head assembly is continuously heat tolerance to 200 degrees F (93 degrees C), and intermittent heat tolerant up to 300 degrees F (149 degrees C).

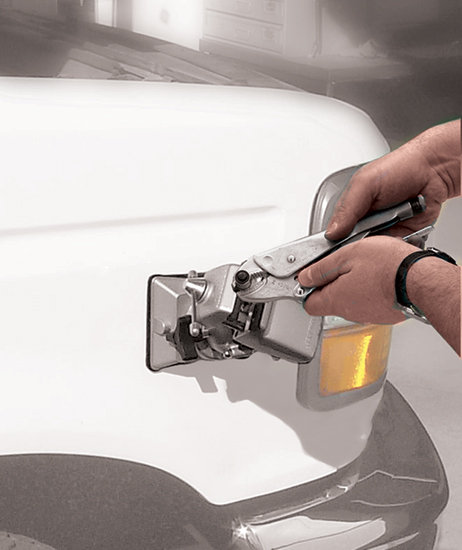

Working on a vise secured item as the PanaVise 381 vacuum base holding tool is attached to a car's exterior

Dependable placement along horizontal or vertical planes where the vise is needed.
View larger.

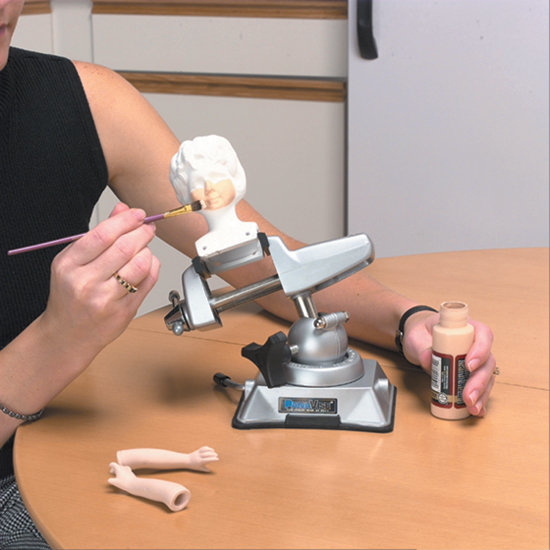

Using the PanaVise 381 vacuum base holding tool for arts and crafts while attached to a table

Convenient adjustability across three separate planes.
View larger.

Tilt, Turn and Rotate Functionality

The PanaVise 381 work-holding tool utilizes PanaVise “split-ball” adjustment functionality at the point of 380 vacuum base and the included 303 standard head. Once an item is secured in the vise head, the split-ball system built into the top portion of the base allows a user to maneuver the item along three separate planes using a single knob to make the adjustments. The mobility range of the model 381’s split-ball system is a 90-degree tilt to the side, along with either an angled rotation, or level turn range of 360 degrees. This range of mobility allows a user to rearrange work items into any position, which limits the need to adjust the overall position of the vise or the item within the vise.

Additional Vise Head Options

In addition to the uses possible with the included, the 381 vacuum base PanaVise is intended for use across a wide range of applications and is designed to be compatible with a variety of vise heads. The base works with all PanaVise 300 series vise heads, the PV Jr. model 203 head or any 5/8″ diameter shaft tool accessory.

Key Features
  • Vacuum base and vise head combination for portable use on any smooth, non-porous surface
  • Rubber pad of base creates vacuum action that hold tool on vertical or horizontal planes
  • Flip lever allows for fast engagement and disengagement of vacuum
  • The easy-to-use “split-ball” adjustment element utilizes single-knob controls for head movement through three separate planes
  • Rubber vacuum pad is replaceable
  • Base is compatible with additional 300 series vise heads, or any 5/8″ diameter shaft tool accessory (all sold separately)
  • Heat-tolerant nylon jaws
Specifications
Overall 380 Vacuum Base 303 Standard Vise Head
  • Height: 6-1/8″ (155.6 mm)
  • Weight: 2.8 lbs. (1.3 kg)
  • 3-plane adjustability
    • Rotation: 360 degrees
    • Turn: 360 degrees
    • Tilt: 90 degrees
  • Height: 3-1/4″ (82.5 mm)
  • Weight: 1.7 lbs. (0.8 kg)
  • Shaft diameter accepted: 5/8″ (15.9 mm)
  • Base diameter: 5-1/8″ x 4-1/4″ (130.2 mm x108 mm)
  • Height: 4-1/4″ (108 mm)
  • Weight: 1.5 lbs. (0.7 kg)
  • Throat depth: 1-3/8″ (34.9 mm)
  • Shaft diameter accepted: 5/8″ (15.9 mm)
  • Shaft length: 2-1/8″ (54 mm)
  • Jaws
    • Material: Nylon
    • Opening: Up to 2-1/4″ (57.1 mm) maximum
    • Dimensions: 2-1/2″ (63.5 mm) (w) x 1/2″ (12.6 mm) (h)
    • Heat tolerance: Continuous up to 200 degrees F (93 degrees C); Intermittent up to 300 degrees F (149 degrees C)
What’s in the Box?
  • PanaVise 381 Vacuum Base PanaVise (380 vacuum base, 303 standard vise head)
  • User’s manual and warranty information
Limited Lifetime Warranty

All PanaVise products are warranted against defective materials and/or workmanship to all original consumer owners from the date of original consumer purchase for the lifetime of ownership by the original consumer owner. In the event of defective materials and/or workmanship, PanaVise Products, Inc. will, without charge, repair or replace, at its option, the defective product within 60-days from the receipt of the defective product. The Warranty does not apply to damage not resulting from defective materials and/or workmanship while in the possession of the original consumer or to unreasonable use by the original consumer, which includes but is not limited to improper installation, or failure to provide reasonable and necessary maintenance.

About PanaVise

Founded in 1957 by tool and die maker Otto Colbert and currently headquartered in Reno, Nevada, PanaVise is a leader in work-holding products. Over the years, a natural outgrowth of this expertise has been continued development of other items which hold things securely and offer a wide range of motion. Important areas in which this has been applied include, Electronics, CCTV Camera Mounts, and Audio/Video Mounts, earning PanaVise the nickname the “the hold it anywhere you want it company.”

3. Portable Vacuum Base Vise Universal Table Vise Tilts Rotate 360° Universal Work

Portable Vacuum Base Vise Universal Table Vise Tilts Rotate 360° Universal Work

Feature

Description

Portable Vacuum Base Vise

4. Lheng Mini Vise/Portable Multi-Angle Pivoting Vacuum Base Vise with 360°Swiveling Head and Powerful Suction

Lheng Mini Vise/Portable Multi-Angle Pivoting Vacuum Base Vise with 360°Swiveling Head and Powerful Suction

Feature

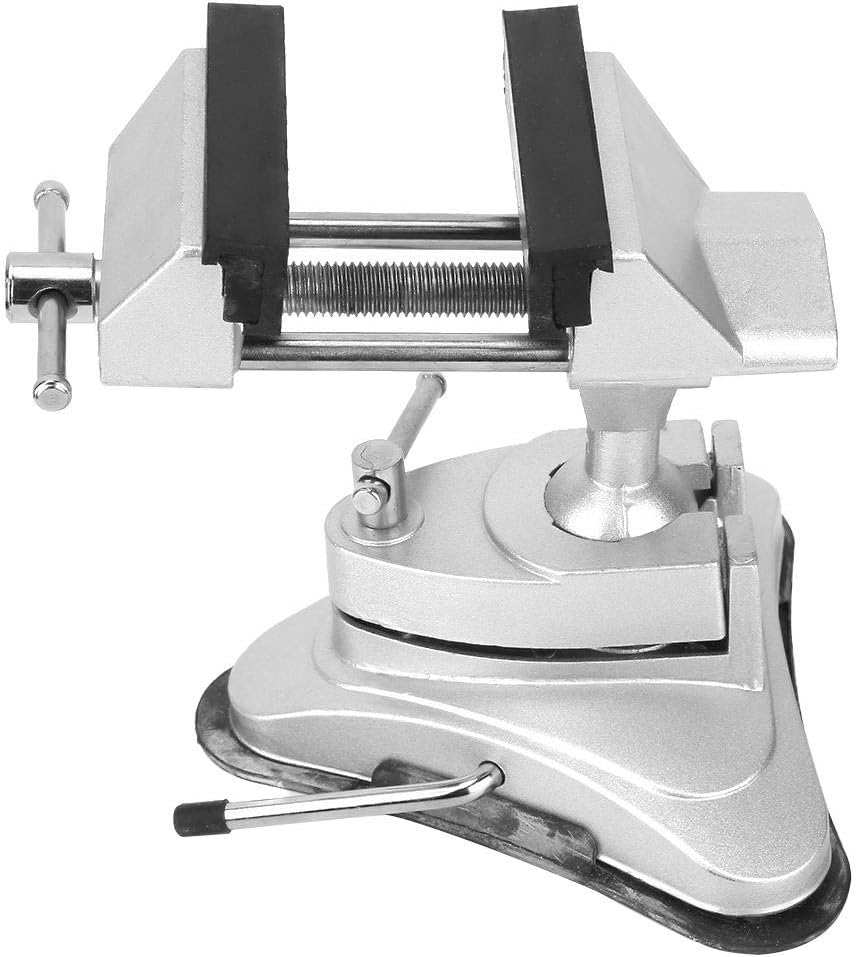

5. Mini Vacuum Base Vise Portable with 360°Swiveling Head and Powerful Suction Multi-Angle Pivoting Small Vice

Mini Vacuum Base Vise Portable with 360°Swiveling Head and Powerful Suction Multi-Angle Pivoting Small Vice

Feature

Description

Vise can be rotated 360-Degree and pivoted 90-Degree to position work optimally with out removing clamped part from the vise jaws.

Vacuum base mounts securely on any smooth, non-porous surface.

Soft rubber jaws maintain a strong a hold on your project without risk of damaging or marking it.

Made of aluminum alloy, sturdy and durable. It can withstand high levels of torque and pressure.

Ideal for a reliable hold in DIY, hobbies, styling, crafts, metal products and welding projects.

Great portability for use anywhere, get a reliable hold where you need it, whether in your garage, shed, den, office, kitchen worktop, work bench or desk.

Note: Due to the light and screen setting difference, the item’s color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement.

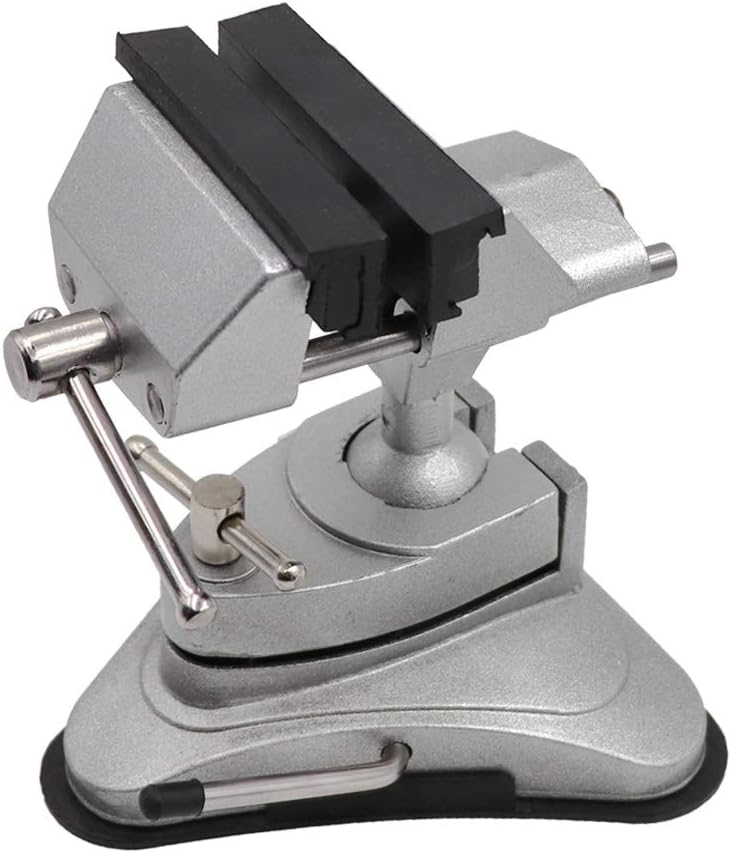

6. Vacuum Base Vise Aluminium Alloy Miniature Vise 360 Degrees Rotation Household Table Vise Machine Tool

Vacuum Base Vise Aluminium Alloy Miniature Vise 360 Degrees Rotation Household Table Vise Machine Tool

Feature

Description

Specification:
Condition: 100% Brand New
Material: Aluminium Alloy
Weight: Approx. 1256g / 44.3oz

Package Included:
1 * Table Vise

7. PanaVise 209 Vacuum Base Pv Jr.

PanaVise 209 Vacuum Base Pv Jr.

Feature

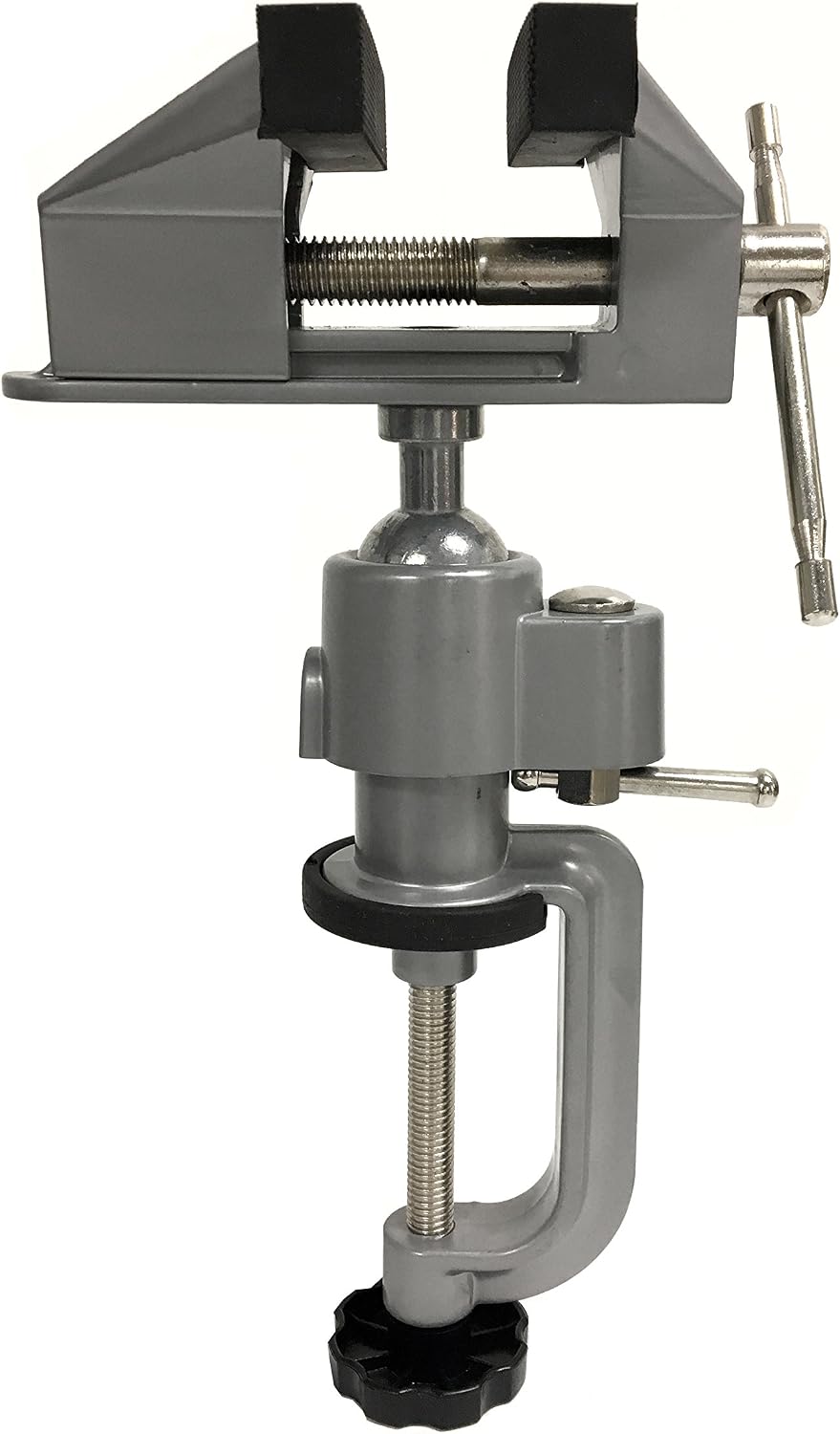

8. MaxWorks 80743 Universal 3" Table Bench Clamp Vise with Swivel Head for Hobby, Electronics, Metal Working, Craft, Jewelry Inspection & More

MaxWorks 80743 Universal 3" Table Bench Clamp Vise with Swivel Head for Hobby, Electronics, Metal Working, Craft, Jewelry Inspection & More

Feature

Description

Our MaxWorks Table Bench Clamp Vise is constructed from die cast aluminum body that is light in weight for easy handling & yet durable to provide years service. Head rotates 360 degrees and tilts 45 DEG and allows user to maneuver work-piece without removing vise for added versatility. 3″ jaw width with a maximum opening of 2″. will easily clamp on 2″ surface by turning lead screw with hand-tight knob. Includes removable rubberized jaw pads to protect delicate work-piece. Grooves on metal jaws hold round work-pieces tightly and securely. A must for any workshop, garage, home, office, school lab, etc.

9. Proxxon 28602 Precision Vise FMS 75

Proxxon 28602 Precision Vise FMS 75

Feature

Description

Product Description

Rotates in all directions. Made of die-cast zinc. A strong suction cup facilitates instantaneous fixing to any smooth, flat surface. Ball and socket: rotates in all directions (even downwards). 3″ (75mm) jaws with protective covers (for delicate workpieces). Maximum clamping width 2 3/16″ (70mm). Weight 3 1/2 lbs (1.6kg).

From the Manufacturer

Proxxon micromot precision vise FMS 75 with suction clamp, perfect for hobbies and crafts, woodworking, woodcarving, industry, electronics and more. Ideal for clamping small and delicate items. suction cup allows rapid attachment to any smooth, non-porous surface. Flip the bottom lever to create the powerful vacuum. The die cast zinc base is also provided with drilled and tapped holes in order to screw the vise permanently to the workbench.

Conclusion

By our suggestions above, we hope that you can found Small Vacuum Vise for you.Please don’t forget to share your experience by comment in this post. Thank you!
